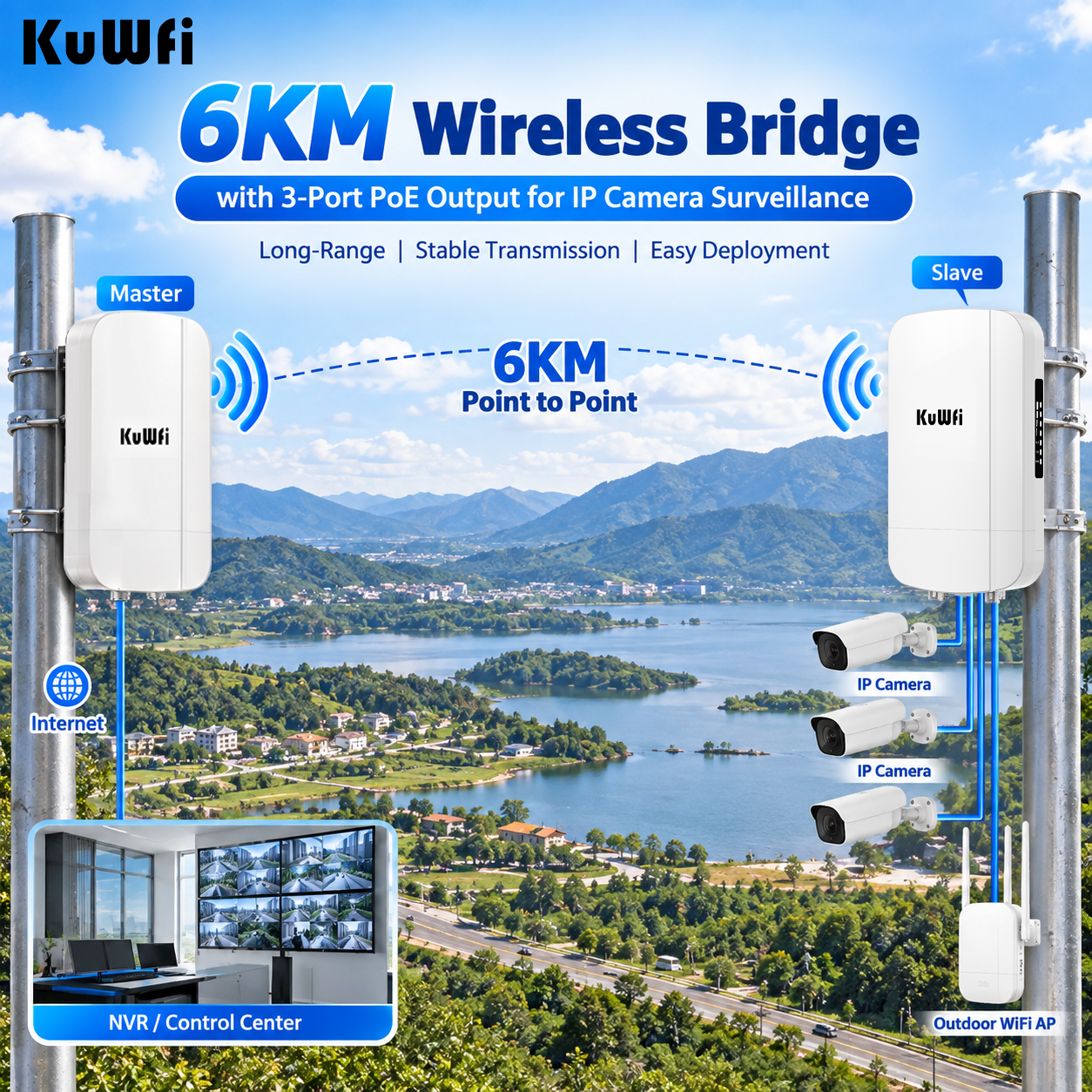

The Outdoor Wireless Bridge is a high-performance 5 GHz networking device designed to extend network connectivity across buildings, outdoor areas, and remote sites. Featuring a built-in 14 dBi directional antenna, wireless speeds of up to 867 Mbps, and a transmission range of up to 6 km under suitable line-of-sight conditions, it provides a practical solution for long-distance wireless backhaul.

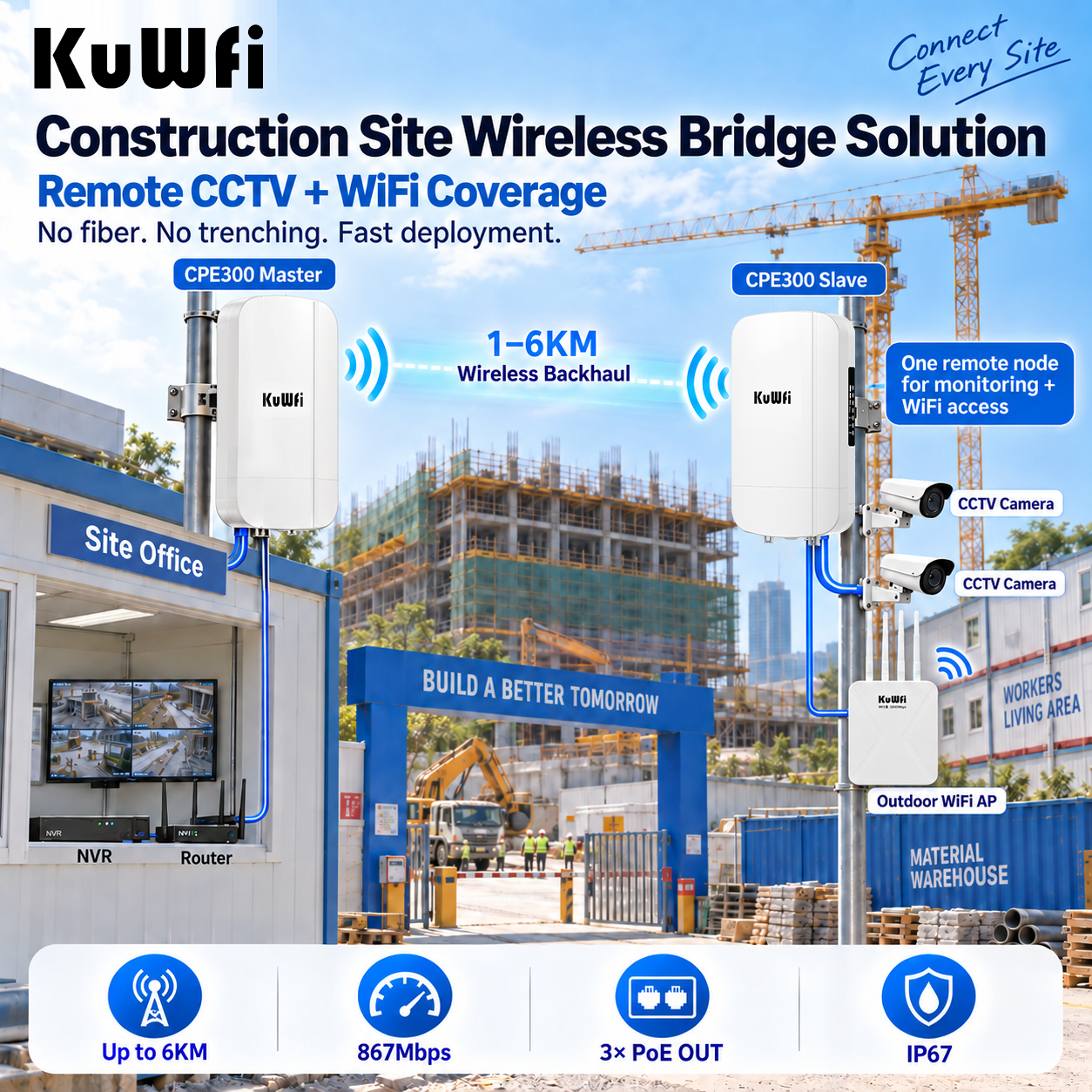

Equipped with one Gigabit PoE input and three Gigabit PoE output ports, this device distributes network connectivity and power to compatible downstream equipment. Multiple operating modes, a hardware pairing switch, and a weather-resistant enclosure make it suitable for CCTV systems, building-to-building connections, remote access points, and industrial networking applications.
Long-Range Wireless Transmission: Supports transmission distances of up to 6 km in clear line-of-sight conditions, with a built-in 14 dBi directional antenna.
High-Speed 5 GHz Wi-Fi: Supports IEEE 802.11a/n/ac Wave 2 with wireless speeds up to 867 Mbps using 2×2 MIMO technology.

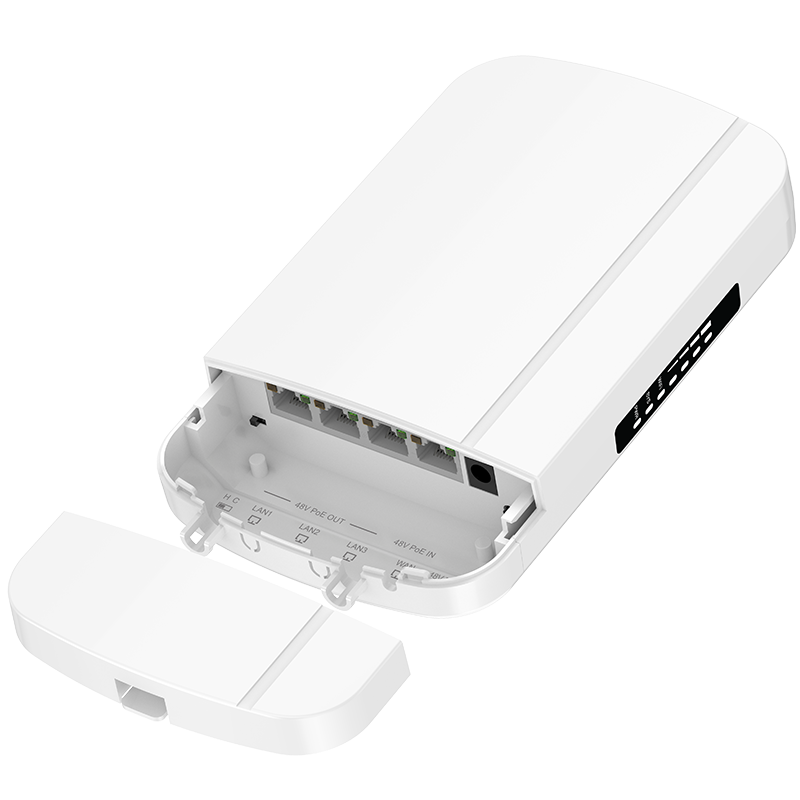

Gigabit Ethernet Connectivity: Includes one Gigabit WAN/PoE input port and three Gigabit PoE output ports for connecting compatible IP cameras, access points, and other network devices.
Flexible PoE Power Distribution: Supports IEEE 802.3bt PoE input and IEEE 802.3af/at PoE output for simplified network installation.

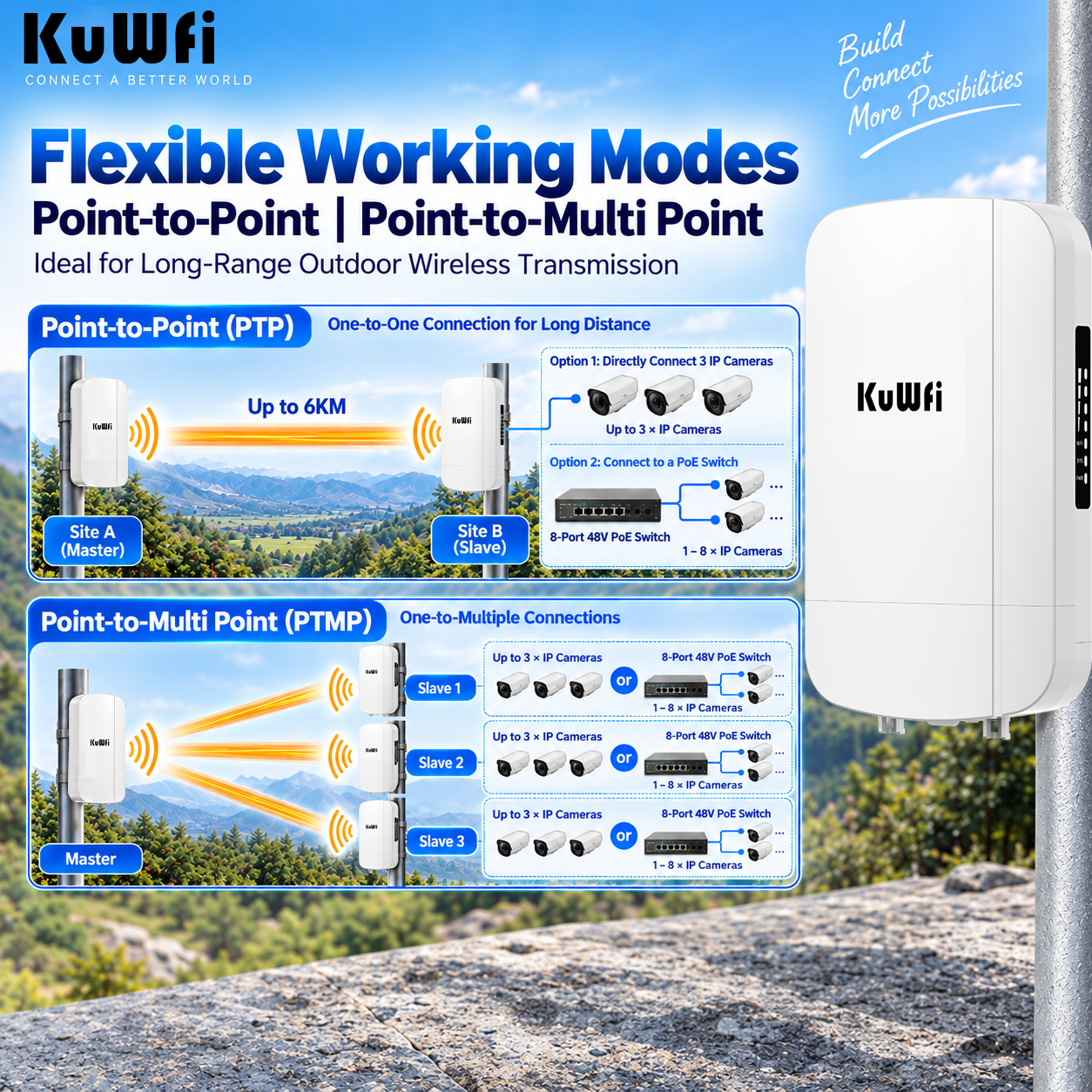

Multiple Operating Modes: Supports Access Point (AP), Wireless Bridge, WISP, and Gateway modes for different networking requirements.
Outdoor-Ready Design: Features an IP65-rated enclosure with ESD and surge protection for demanding outdoor installations.
Easy Pairing and Setup: Includes a hardware switch for master/slave pairing and operating mode selection.
Network Monitoring and Management: Provides signal-strength monitoring, network topology information, traffic statistics, remote access, and configuration management.
Long-Range Wireless Transmission: Supports transmission distances of up to 6 km in clear line-of-sight conditions, with a built-in 14 dBi directional antenna.
High-Speed 5 GHz Wi-Fi: Supports IEEE 802.11a/n/ac Wave 2 with wireless speeds up to 867 Mbps using 2×2 MIMO technology.
Gigabit Ethernet Connectivity: Includes one Gigabit WAN/PoE input port and three Gigabit PoE output ports for connecting compatible IP cameras, access points, and other network devices.
Flexible PoE Power Distribution: Supports IEEE 802.3bt PoE input and IEEE 802.3af/at PoE output for simplified network installation.
Multiple Operating Modes: Supports Access Point (AP), Wireless Bridge, WISP, and Gateway modes for different networking requirements.
Outdoor-Ready Design: Features an IP65-rated enclosure with ESD and surge protection for demanding outdoor installations.
Easy Pairing and Setup: Includes a hardware switch for master/slave pairing and operating mode selection.
Network Monitoring and Management: Provides signal-strength monitoring, network topology information, traffic statistics, remote access, and configuration management.
| Product Type | Outdoor Wireless Bridge |
|---|---|
| Model | CPE300 |
| Wireless Standard | IEEE 802.11a/n/ac Wave 2 |
| Frequency Band | 5.150–5.850 GHz |
| Maximum Wireless Speed | 867 Mbps |
| MIMO Technology | 2×2 MIMO |
| Antenna Type | Built-in directional antenna |
| Antenna Gain | 14 ± 1 dBi |
| Antenna Polarization | Vertical, Horizontal dual polarization |
| Transmission Distance | Up to 6 km under suitable line-of-sight conditions |

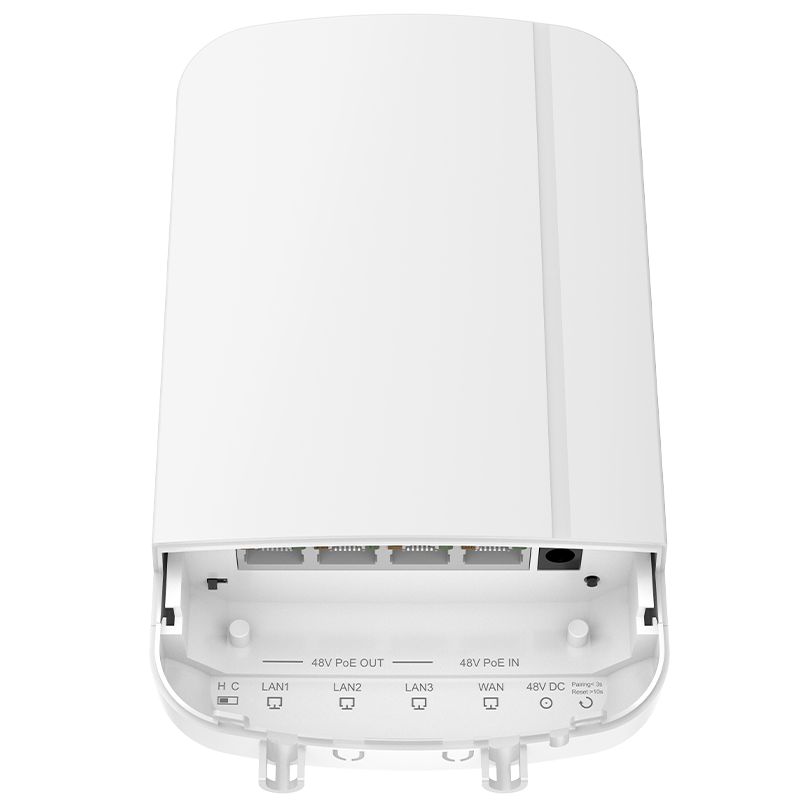

| WAN | PoE Input | 1× Gigabit RJ45, IEEE 802.3bt |
| LAN | PoE Output | 3× Gigabit RJ45, IEEE 802.3af/at |
| Power Input | 48 V PoE, 0.5 A, 48 V DC, 2 A |
| Maximum Power Consumption | Less than 60 W |
| Operating Modes | AP, Wireless Bridge, WISP, Gateway |
| Processor | QCA9563 + QCA9886 + QCA8337 |
| Flash Memory | 16 MB SPI NOR |
| RAM | 128 MB DDR2 |
| Wireless Security | WPA, WPA2-PSK AES; open mode |
| Network Support | IPv4, IPv6 |
| Management | Web interface, Telnet, SSH, SNMP |
| Ingress Protection | IP65 |
| ESD Protection | Air: ±8 kV; Contact: ±6 kV |
| Surge Protection | Common mode: 2 kV; Differential mode: 1 kV |
| Operating Temperature | −30°C to 55°C |
| Storage Temperature | −40°C to 70°C |
| Operating Humidity | 5%–95%, non-condensing |
| Product Dimensions | 190 × 110 × 50 mm |
| Item Net Weight | 0.6 kg |
