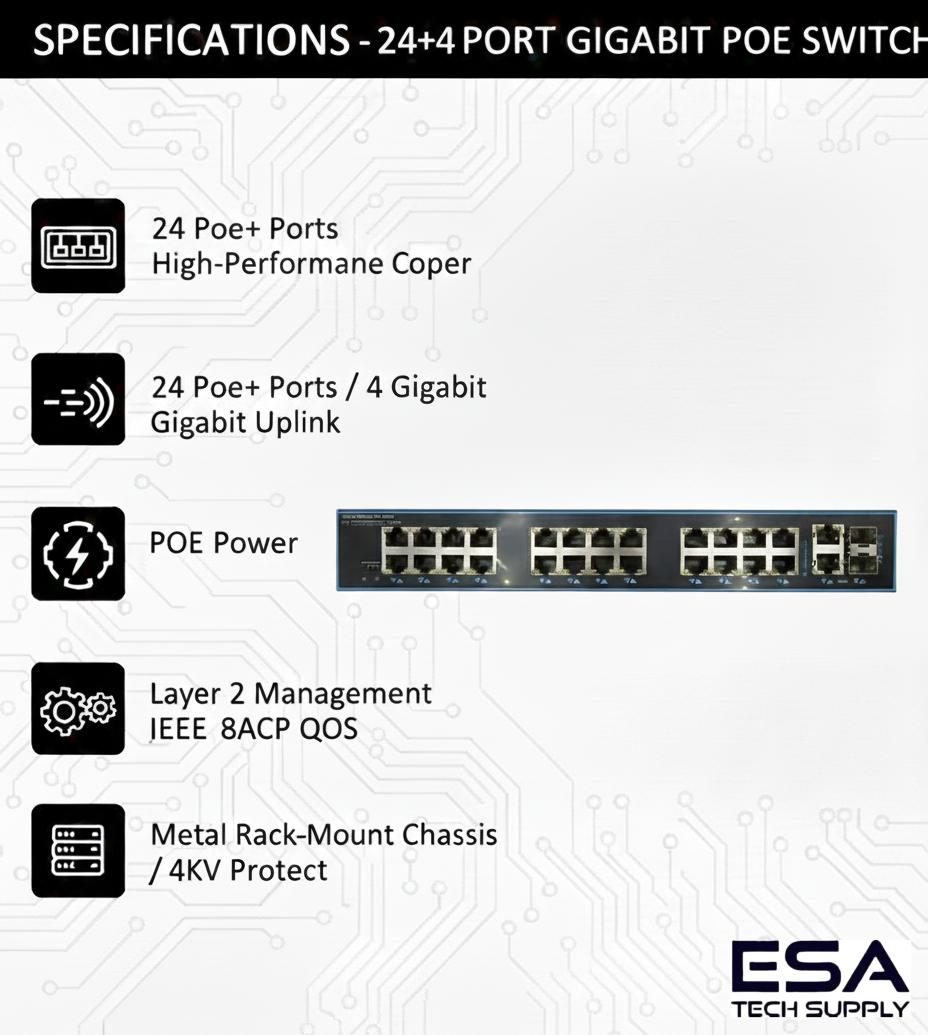

24+4 Port PoE Gigabit Switch

Description

The ESA 24+4 Port PoE Gigabit Switch is a high-capacity unmanaged switch designed for large surveillance systems, enterprise networks, and high-density PoE deployments. It provides 24 Gigabit PoE ports for powering IP cameras, access points, and VoIP phones, along with 4 dedicated Gigabit uplink ports (2 RJ45 and 2 SFP) for high-speed backbone connectivity. With a 450W PoE power budget, reliable Gigabit performance, and rack-mount design, it is ideal for professional networking environments.

Features:

24 × 10/100/1000 Mbps Gigabit PoE ports supporting IEEE 802.3af and IEEE 802.3at
2 × Gigabit RJ45 uplink ports and 2 × Gigabit SFP uplink ports
Maximum 30W PoE output per port
High total PoE power budget of 450W
Plug-and-play unmanaged design with no configuration required
Full Gigabit switching ensures fast and stable network performance
Intelligent PoE detection automatically powers compatible devices
Durable metal chassis designed for continuous 24/7 operation
Rack-mountable design suitable for network cabinets
Fanless industrial design for silent and reliable operation
LED indicators for power, link/activity, and PoE status
Built-in internal power supply (AC 100–240V)

Perfect for IP surveillance systems, enterprise networks, wireless AP deployments, hotels, campuses, and data communication environments.

Product successfully added to the Quote List

Description

24 × 10/100/1000 Mbps Gigabit PoE ports supporting IEEE 802.3af and IEEE 802.3at
2 × Gigabit RJ45 uplink ports and 2 × Gigabit SFP uplink ports
Maximum 30W PoE output per port
High total PoE power budget of 450W
Plug-and-play unmanaged design with no configuration required
Full Gigabit switching ensures fast and stable network performance
Intelligent PoE detection automatically powers compatible devices
Durable metal chassis designed for continuous 24/7 operation
Rack-mountable design suitable for network cabinets
Fanless industrial design for silent and reliable operation
LED indicators for power, link/activity, and PoE status
Built-in internal power supply (AC 100–240V)

Perfect for IP surveillance systems, enterprise networks, wireless AP deployments, hotels, campuses, and data communication environments.

Product Specifications

Additional information

Switch Type	Unmanaged PoE Switch
Total Ports	28
PoE Ports	24 × Gigabit RJ45
Uplink Ports	2 × Gigabit RJ45 + 2 × Gigabit SFP
PoE Standard	IEEE 802.3af / IEEE 802.3at
Max PoE Output per Port	30W
Total PoE Budget	450W
Port Speed	10/100/1000 Mbps
Switching Capacity	52 Gbps
Forwarding Rate	38.7 Mpps
Power Supply	Internal AC 100–240V, 50/60Hz
Transmission Method	Store and Forward
Ideal Use Cases	IP Surveillance, Enterprise Networks, Wi-Fi Deployments, SMB Infrastructure
